Stainless Steel Belt Conveyors & Conveyor Systems
Stainless steel belt conveyors for food, pharmaceutical and other clean
Stainless steel framed belt conveyors.
Our stainless steel conveyor belts are engineered for a variety of common clean product
handling applications. Belt material choices include FDA approved white PVC or Urethane. Other choices to meet your
specific application requirements include a variety of frame lengths, widths, elevations, stand types, drive types
and side rails.
Features and benefits:
- Tool-free Quick-belt tension release mechanism on some models
- Standoffs on legs with angled ends on some models
- 304 Stainless Steel frame as standard
- Continuous TIG welded frames, ground and polished
- Some models suited for full washdown
Design and specify your own Dorner belt
Dorner D-Config software helps you to specify your Dorner
conveyor belt. Select the right conveyor type. Provides descriptions and part numbers. Build your
conveyors with stands, drives, side guides. Create 2D and 3D CAD files and PDF based designs. Use
the above details to request a quote.
It's quick and easy to do......Try it

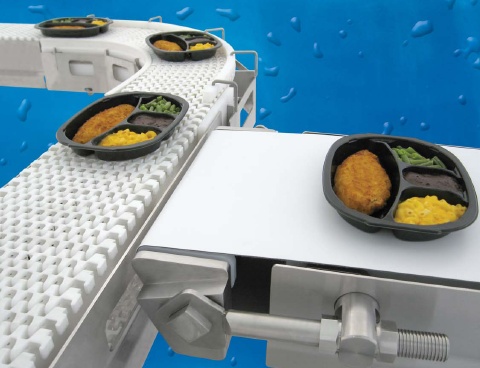

Dorner Stainless Steel belt conveyors.
Dorner 6200 Stainless Steel Conveyors : General Specifications
Flat Belt End Drive, Cleated Belt, and Centre Drive models
Loads up to 120 lbs. (54 Kg)
Lengths up to 24’ (7,315)
Widths up to 18” (457)
1” (25 mm) diameter head and tail pulleys
Dorner 7300 series stainless steel belt conveyors
Flat Belt and Cleated Belt Loads up to 60 lbs. (27 Kg)
Lengths up to 18’ (5,486) Widths up to 18” (457) Models Available
Dorner 7300 Stainless Steel Conveyors : General Specifications
Flat Belt and Cleated Belt
Loads up to 60 lbs. (27 Kg)
Lengths up to 18’ (5,486)
Widths up to 18” (457)
Dorner 7600 Stainless Steel Conveyors :
- Straight Flat Belt and Cleated Belt Models
- Curved Flat Belt Models (45?, 90? & 180?)
- LPZ Flat Belt and Cleated Belt Models (0 to 60°+)
- Loads up to 20 lbs. per square foot of belt (90 Kg/M2)
- Lengths 36” (914mm) up to 480” (12.2 m)
- Widths up to 60” (1524mm)
- Continuous TIG Welded 304 stainless steel frame
Dorner 7600 ULTIMATE Stainless Steel Conveyors
The ULTIMATE Series has been engineered for fast & effective sanitation in the most
demanding environments. These include RTE foods, raw protein (meat - poultry - fish), dairy and other
environments with high pressure sanitation requirements. Food, beverage, supplements, nutrition, food
processing, food packaging, food marketing, food retailing, dairy, confectionery, biscuit, processing,
prepared food, ready meals, food processing, meat processing, pharmaceutical, technology, drug, laboratory,
bio-pharmaceutical, science, pharma, cosmetics, formulation, cosmetics packaging, packaging.
