Flexible Gravity Roller Conveyor Prices
Suppliers of flexible roller conveyors that extend and bend to your requirements
Live online prices.......
| 50mm Ø PVC roller type flexible roller conveyors |
|
|
|
|
|
|
|
| |
Conveyor Width (mm) |
| Length Closed/Open (mm) |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1200 |
|
| 740/1500 |
£246.56 |
£302.81 |
£315.00 |
£329.06 |
£401.25 |
£495.94 |
£516.56 |
£536.25 |
£578.44 |
|
| 940/2000 |
£297.19 |
£384.38 |
£398.44 |
£415.31 |
£477.19 |
£588.75 |
£611.25 |
£630.94 |
£712.50 |
|
| 1360/3000 |
£412.50 |
£520.31 |
£541.88 |
£566.25 |
£676.88 |
£840.00 |
£875.63 |
£908.44 |
£1,002.19 |
|
| 1560/3500 |
£463.13 |
£602.81 |
£625.31 |
£652.50 |
£752.81 |
£932.81 |
£969.38 |
£1,003.13 |
£1,137.19 |
|
| 1980/4500 |
£577.50 |
£738.75 |
£767.81 |
£803.44 |
£953.44 |
£1,183.13 |
£1,233.75 |
£1,280.63 |
£1,426.88 |
|
| 2180/5000 |
£629.06 |
£793.13 |
£851.25 |
£889.69 |
£1,029.38 |
£1,275.94 |
£1,327.50 |
£1,375.31 |
£1,560.94 |
|
| 2600/6000 |
£743.44 |
£956.25 |
£994.69 |
£1,040.63 |
£1,229.06 |
£1,526.25 |
£1,591.88 |
£1,652.81 |
£1,830.50 |
|
| 2800/6500 |
£794.06 |
£1,038.75 |
£1,078.13 |
£1,125.94 |
£1,305.00 |
£1,619.06 |
£1,685.63 |
£1,747.50 |
£1,938.50 |
|
| 3220/7500 |
£908.44 |
£1,174.69 |
£1,221.56 |
£1,277.81 |
£1,505.63 |
£1,846.25 |
£1,910.00 |
£1,969.25 |
£2,170.25 |
|
| 3420/8000 |
£960.00 |
£1,257.19 |
£1,305.00 |
£1,363.13 |
£1,581.56 |
£1,919.75 |
£1,985.00 |
£2,045.75 |
£2,277.50 |
|
| 3840/9000 |
£1,074.38 |
£1,392.19 |
£1,447.50 |
£1,515.00 |
£1,781.25 |
£2,120.75 |
£2,196.50 |
£2,267.00 |
£2,509.25 |
|
| 4040/9500 |
£1,125.00 |
£1,474.69 |
£1,530.94 |
£1,600.31 |
£1,835.75 |
£2,195.00 |
£2,271.50 |
£2,342.75 |
£2,617.25 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 50mm Ø Bright zinc plated steel roller type flexible roller
conveyors |
|
|
|
|
|
| |
Conveyor Width (mm) |
| Length Closed/Open (mm) |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1200 |
|
| 740/1500 |
£257.81 |
£323.44 |
£337.50 |
£352.50 |
£425.63 |
£529.69 |
£551.25 |
£572.81 |
£623.44 |
|
| 940/2000 |
£315.00 |
£416.25 |
£431.25 |
£449.06 |
£513.75 |
£639.38 |
£661.88 |
£685.31 |
£780.94 |
|
| 1360/3000 |
£435.00 |
£561.56 |
£585.94 |
£612.19 |
£726.56 |
£906.56 |
£943.13 |
£980.63 |
£1,093.13 |
|
| 1560/3500 |
£491.25 |
£654.38 |
£680.63 |
£708.75 |
£813.75 |
£1,016.25 |
£1,054.69 |
£1,093.13 |
£1,250.63 |
|
| 1980/4500 |
£611.25 |
£799.69 |
£834.38 |
£871.88 |
£1,026.56 |
£1,283.44 |
£1,335.94 |
£1,388.44 |
£1,562.81 |
|
| 2180/5000 |
£668.44 |
£893.44 |
£929.06 |
£968.44 |
£1,114.69 |
£1,393.13 |
£1,446.56 |
£1,500.94 |
£1,720.31 |
|
| 2600/6000 |
£788.44 |
£1,039.69 |
£1,083.75 |
£1,131.56 |
£1,327.50 |
£1,660.31 |
£1,727.81 |
£1,796.25 |
£1,976.00 |
|
| 2800/6500 |
£845.63 |
£1,132.50 |
£1,177.50 |
£1,228.13 |
£1,414.69 |
£1,770.00 |
£1,821.50 |
£1,877.75 |
£2,102.00 |
|
| 3220/7500 |
£965.63 |
£1,277.81 |
£1,332.19 |
£1,391.25 |
£1,627.50 |
£1,979.75 |
£2,046.50 |
£2,113.25 |
£2,351.75 |
|
| 3420/8000 |
£1,021.88 |
£1,370.63 |
£1,426.88 |
£1,488.75 |
£1,715.63 |
£2,067.50 |
£2,135.00 |
£2,204.00 |
£2,477.75 |
|
| 3840/9000 |
£1,142.81 |
£1,516.88 |
£1,580.63 |
£1,650.94 |
£1,892.75 |
£2,281.25 |
£2,360.00 |
£2,440.25 |
£2,727.50 |
|
| 4040/9500 |
£1,199.06 |
£1,609.69 |
£1,675.31 |
£1,748.44 |
£1,963.25 |
£2,369.00 |
£2,449.25 |
£2,530.25 |
£2,853.50 |
|
| |
|
|
|
|
|
|
|
|
|
|
Prices shown are net, ex works UK and do not include VAT.

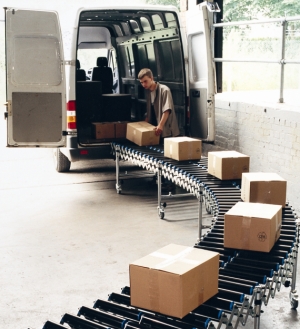

Key features of expanding flexible roller conveyor systems
- Standard roller widths from 300mm to 1200mm.
- Steel adjustable conveyor support legs - 450mm to 1500mm in stages.
- 50mm diameter heavy duty steel zinc plated tube with semi precision bearings. These conveyors are also
available with tough high impact plastic conveyor rollers for conveying of more fragile or sensitive
loads.
- Twin Roller Axle Support is jig welded and spans the conveyor width on some models.
- The one piece ‘Constantly Vertical’ all steel roller and axle support feature ensures maximum strength
throughout these flexible roller conveyors.
- These conveyors are fitted with heavy duty castors for maximum strength and robust mobility, including a
foot brake for fixed positioning and safer conveyor handling.
- Flexible roller conveyors are self tracking. Boxes follow the twists and turns of the conveyor whatever way
it’s orientated.
- Package Stops prevent boxes and packages from falling off the end of the conveyor and can be lowered if
required for storage when not in use, or when connecting to another flexible roller conveyor.
- Standard fully extended conveyor roller centres can be adjusted for small parts by using limit plates but
these do shorten the expanded lengths.
- Please note that optional roller centres will have an effect the conveyors compact length and also the
final cost of the conveyor. It’s always best to keep to the standard sizes.
Please feel
free to contact us at any time for a quote.
Our advice and friendly
technical help is free.
|
